পণ্যের বিবরণ
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: LINK-PP
সাক্ষ্যদান: RoHS
মডেল নম্বার: L834-1K1T-S7
পেমেন্ট এবং শিপিং শর্তাবলী
ন্যূনতম চাহিদার পরিমাণ: 65/780 পিসি
মূল্য: $0.6-$1.0
প্যাকেজিং বিবরণ: টেপ এবং রিল （65X12=780）
ডেলিভারি সময়: 3-5 দিন
পরিশোধের শর্ত: D/A, D/P
যোগানের ক্ষমতা: 5 কে কে/মাস
পণ্যের ধরন: |
গিগাবিট আরজে৪৫ ম্যাগজ্যাক |
P/N: |
L834-1K1T-S7 |
গতি: |
1000base-t |
LED রঙ: |
YG/G |
পোর্ট কনফিগারেশন: |
ট্যাব ডাউন |
উচ্চতা প্রোফাইল: |
মাঝ-বিমান |
ইএমআই ট্যাব: |
হ্যাঁ |
Rohs কমপ্লায়েন্ট: |
হ্যাঁ |
পণ্যের ধরন: |
গিগাবিট আরজে৪৫ ম্যাগজ্যাক |
P/N: |
L834-1K1T-S7 |
গতি: |
1000base-t |
LED রঙ: |
YG/G |
পোর্ট কনফিগারেশন: |
ট্যাব ডাউন |
উচ্চতা প্রোফাইল: |
মাঝ-বিমান |
ইএমআই ট্যাব: |
হ্যাঁ |
Rohs কমপ্লায়েন্ট: |
হ্যাঁ |

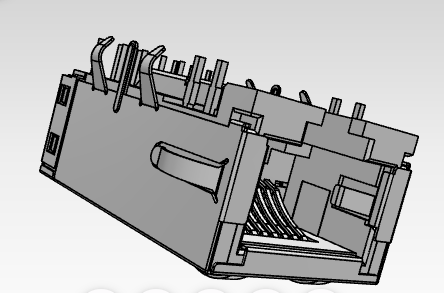

The Bel Fuse L834-1K1T-S7 is a premium, high-performance MagJack designed for Gigabit Ethernet (1000BASE-T) applications. Engineered for space-constrained designs, this 1x1, Tab Down, Low Profile / Mid-Plane RJ45 connector features integrated magnetics that reduce PCB footprint, improve signal integrity, and ensure robust EMI compliance.
Equipped with built-in Yellow-Green/Green (YG/G) LEDs for clear network status indication and robust EMI tabs for superior noise shielding, the L834-1K1T-S7 is highly reliable for enterprise networking, telecommunications, and industrial computing applications. It is fully RoHS compliant and UL recognized.
If you are searching for a 1000BASE-T MagJack 1x1 connector with a compact footprint and integrated magnetic functionality, L834-1K1T-S7 offers a practical balance of performance and design simplicity.
This MagJack is especially useful when you need:
| Specification | Value |
|---|---|
| Manufacturer Part Number | L834-1K1T-S7 |
| Product Type | MagJacks (ICMs) |
| Number of Ports | 1 × 1 (Single Port) |
| Ethernet Speed | 1000BASE-T (Gigabit Ethernet) |
| Port Configuration | Tab Down |
| Height Profile | Mid-Plane / Low Profile (NanoJack) |
| LED Indicators | Yes (YG/G – Left: Green, Right: Bi-Color Yellow & Green) |
| PoE Rating | Non-PoE |
| Mounting Type | Through Hole Mount (THT) |
| Operating Temperature | 0°C to +70°C (Commercial Grade) |
| EMI Tabs | Yes |
| OCL (Open Circuit Inductance) | 350µH Min. (@ 100kHz, 100mV, 8mA DC Bias) |
| Isolation Voltage (HIPOT) | 1500 Vrms (IEEE 802.3 Compliant) |
| Contact Plating | 30 Micro-inches Hard Gold |
| RoHS Compliant | Yes |
| Certifications | UL Recognized (#E196366 & E169987), FCC Compliant |
| Application | Gigabit Ethernet Networking Equipment |
| Typical Devices | Switches, Routers, Industrial Ethernet Devices, Embedded Systems, Network Appliances |
| Integrated Magnetics | Yes |
| Shielding | Shielded RJ45 with EMI Tabs |
| Connector Type | RJ45 MagJack with Integrated Magnetics |
| Ethernet Standard | IEEE 802.3ab 1000BASE-T |
| PCB Mounting | Through-Hole Soldering |
| Environmental Compliance | RoHS, Lead-Free |
| Commercial Availability | Suitable for OEM, ODM, and Replacement Designs |
| Parameter | Test Conditions / Frequency Range | Specification |
|---|---|---|
| Supported Network | — | Gigabit Ethernet (4 Channels: TP1, TP2, TP3, TP4) |
| Turns Ratio | All 4 Channels | 1CT : 1CT ±2% |
| Open Circuit Inductance (OCL) | 100kHz, 100mVrms, 8mA DC Bias (0°C to +70°C) | 350µH MIN |
| Insertion Loss | 0.1MHz – 1MHz | -1.1dB MAX |
| 1MHz – 65MHz | -0.5dB MAX | |
| 65MHz – 100MHz | -0.8dB MAX | |
| 100MHz – 125MHz | -1.2dB MAX | |
| Return Loss (MIN @ 100Ω ±15%) | 0.5MHz – 40MHz | -18dB MIN |
| 40MHz – 100MHz | -12 + 20LOG(f/80MHz) dB MIN | |
| CM to CM Rejection | 100kHz – 100MHz | -30dB MIN |
| CM to DM Rejection | 100kHz – 100MHz | -35dB MIN |
| Crosstalk | 1MHz – 100MHz | -30dB MIN |
| Isolation Voltage (HIPOT) | 100% Production Tested (IEEE 802.3 Compliant) | 1500Vrms |
The L834-1K1T-S7 MagJack is suitable for a wide range of Ethernet-enabled devices, including:
L834-1K1T-S7 MagJack is a 1000BASE-T 1x1 integrated connector module with YG/G LEDs, tab-down design, low-profile height, EMI tabs, through-hole mounting, and RoHS compliance.
L834-1K1T-S7 is a MagJack (ICM) designed for 1000BASE-T Gigabit Ethernet applications with a 1X1 port configuration.
Yes. The L834-1K1T-S7 MagJack includes YG/G LEDs for port status indication.
No. This part is rated as Non-PoE.
It uses a through-hole mount design.
Yes, the L834-1K1T-S7 is RoHS compliant.
